ROBOTAST Parallel guiding system​

■ Pretec

• ROBOTAST Parallel guiding system

• DISPLAY UNIT

• Special plugs and rings

o ROBOTAST Parallel guiding system

- Pneumatically activated and retracted

- Mechanical fine adjustment of the measuring pin

over 15mm

- Adjustable measuring pressure

- High precision linear bearing

- Available in three versions for measuring range of 12,

6 and 3mm

- A large choice of accessories available

- Compatible with various manufacturers’ electronic

transducers ©

Internal Measurement with RT 30V R/00​

Technical specifications

Probe connections 4, no limits of combination

Measuring probe PRETEC 29xxN/TESA GTxx

Factor each probe individually adjustable static： positive, negative

Mode of measuring dynamic： maximum, minimum, difference, average 20 to

330 measuring/second

Measuring speed 73, 75 mV/V/mm

Measuring range TFT graphic dispby with

Display background lighting instrument 5304： 1pm, 0.1 "m

Numerical step value instrument 5314: 1pm, 0.1 um, 0.01 pm maximum 4 columns

of maximum

Layout 12 numerical values

Memory of 1000 values (with time and date)

Measurements RS 232, CAN bus, digital signals

Inputs, outputs net adapter 24 VDC

Power supply IP 54 for front plate

Protection

Technical specifications

Applications together with PC and installed software BRIDGE

Probe connections 8 per box 5808 HE boxes 5808 HE cascadable

Measuring speed 20 to 330 measurements / channel / second

Measuring range 1 (24-Bit AD converter)

Sensibility 73,75 mV/V/mm

Display LCD display for status display

Resolution 1pm, 0.1pm, 0.01pm

Inputs/outputs RS232, CAN bus, digitals signal

Power supply net adaptor 24 VDC, for max. 3 boxes 5808 HE

Protection IP 52 for fronte plate

Remarks display, mode of measurement and storage determined

through measuring software BRIDGE

Technical specifications

Measuring range

Analogue instrument ±10, 30, 100, 300, 1000 um (with the 2970 to 3000 pm)

Digital instrument ±100, 1000 um

Functions +A, -A, A+B, A-B, -A+B, -A-B

Dynamic functions max, min, max-min

Accuracy digital readout 0.5% / tolerance signals 0.5% /

analogue readout 1 %​

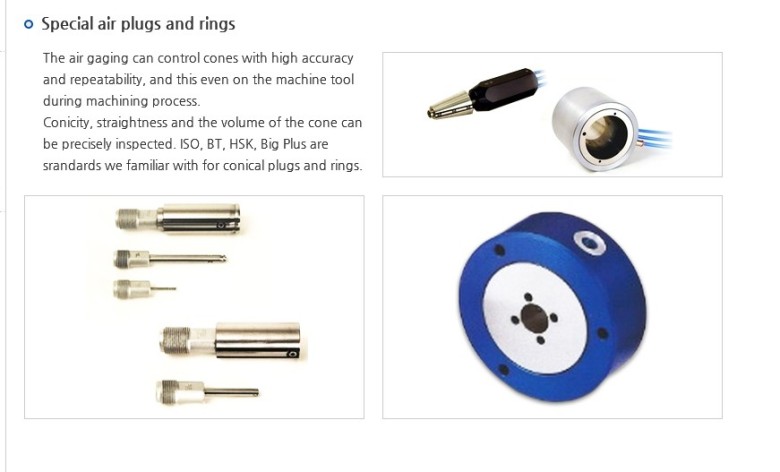

o Special air plugs and rings

The air gaging can control cones with high accuracy

and repeatability, and this even on the machine tool

during machining process.

Conicity, straightness and the volume of the cone can

be precisely inspected. ISO, BT, HSK, Big Plus are

srandards we familiar with for conical plugs and rings.​
